Description
Automatic butt fusion machine CNC series
Feature:
1.Preloaded major welding standard (DVS,TSG,D2002-2006 and others),fully record the welding parameters, Welding record is true ,
2.Welding data can be printed and can be transform to thermal via wifi,realize real-time monitoring
3.Traceability option: position,material,date,operator,welding parameter and others
4.Stable quality ,long working life, can reduce the loss caused by equipment failure.
5.New touch screen, GPS location, Enter the operating system by swiping card. strictly control welding operation and quality
6.The 4th clamp is separated from the machine facilitate laying operation and the weld of tee fitting, elbow ,flange
7.Heating plate pop-up automatically, no manual operation, reduce operation step, Increase the level of automation
Standard composition:

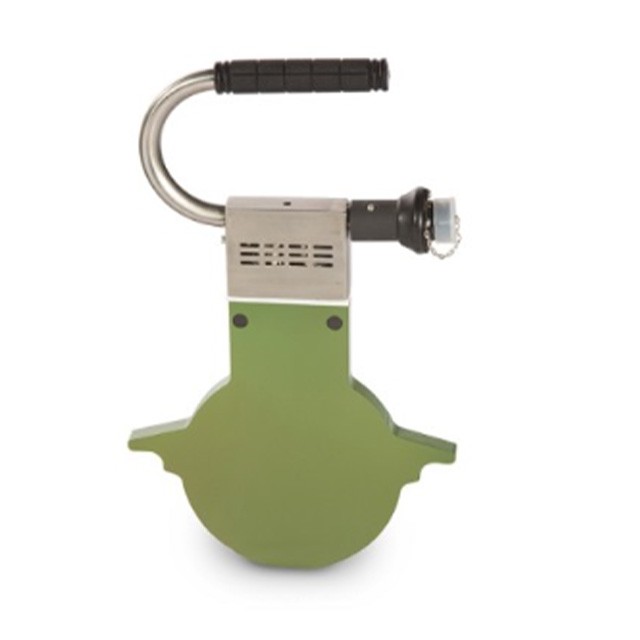

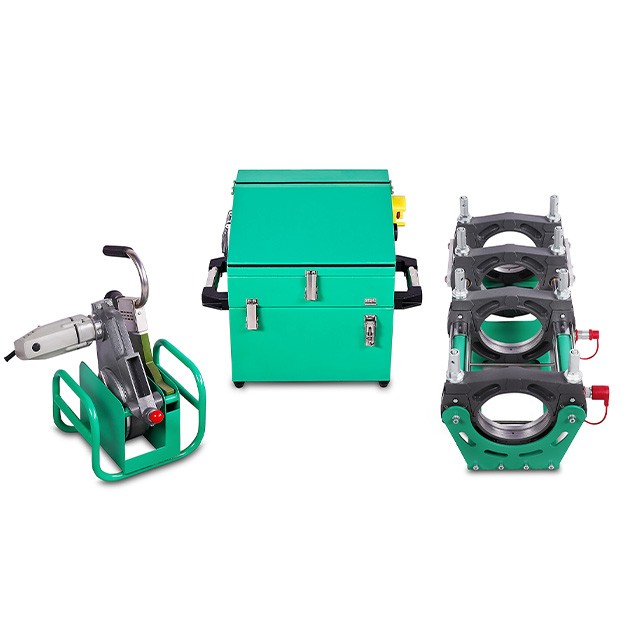

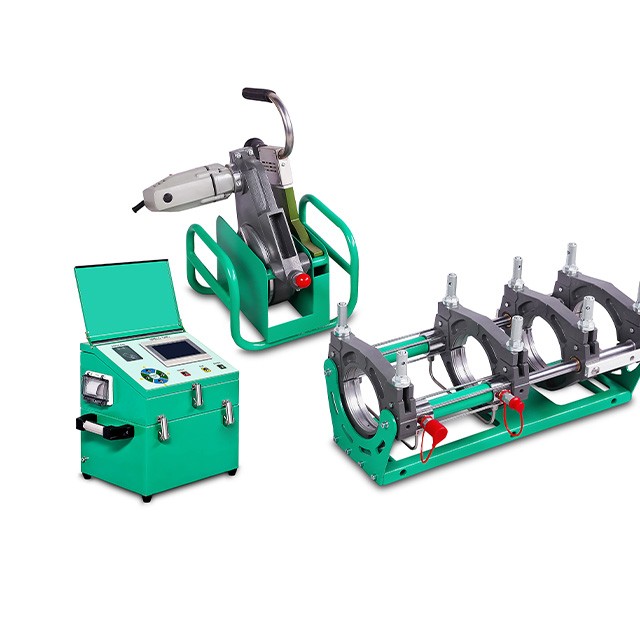

Machine body,milling cutter,heating plate,Hydraulic control unit,support,tool bag,clamps 63,90,110,160,200,250,315mm.
Feature:
1.Preloaded major welding standard (DVS,TSG,D2002-2006 and others),fully record the welding parameters, Welding record is true ,
2.Welding data can be printed and can be transform to thermal via wifi,realize real-time monitoring
3.Traceability option: position,material,date,operator,welding parameter and others
4.Stable quality ,long working life, can reduce the loss caused by equipment failure.
5.New touch screen, GPS location, Enter the operating system by swiping card. strictly control welding operation and quality
6.The 4th clamp is separated from the machine facilitate laying operation and the weld of tee fitting, elbow ,flange
7.Heating plate pop-up automatically, no manual operation, reduce operation step, Increase the level of automation
Standard composition:
Machine body,milling cutter,heating plate,Hydraulic control unit,support,tool bag,clamps 63,90,110,160,200,250,315mm.

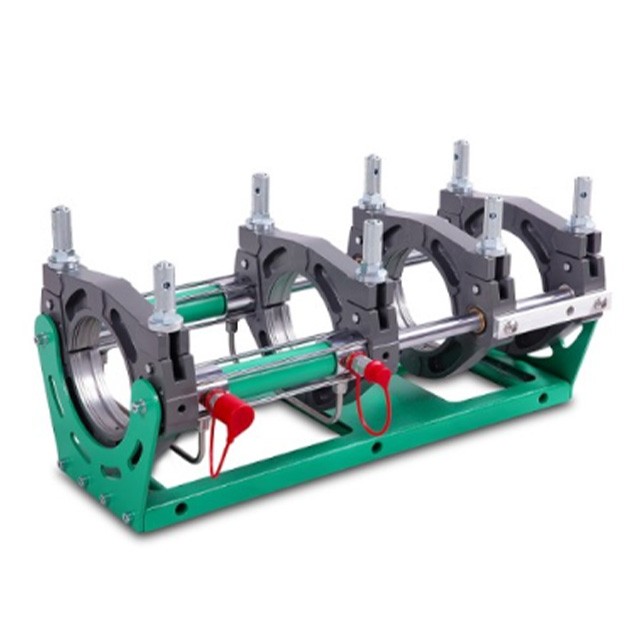

Single clamps, accurate processing size, can effectively reduce the time of pipeline alignment operation, improve the efficiency of welding.
| Model | CNC 355 | CNC 400 | CNC 500 | CNC 630 |
| Working range | 160-355mm | 250-400mm | 315-500mm | 400-630mm |
| Materials | PE/PP/PB/PVDF | PE/PP/PB/PVDF | PE/PP/PB/PVDF | PE/PP/PB/PVDF |
| Rated voltage | 220VAC 50/60HZ | 380VAC 50/60HZ | 380VAC 50/60HZ | 380VAC 50/60HZ |
| Rated power | 5800W | 6880W | 8500W | 10500W |
| Memory (welding cycles) | 4000 | 4000 | 4000 | 4000 |
| Protection degree | IP54 | IP54 | IP54 | IP54 |
