Description
Automatic butt fusion machine CNC series
Feature:
1.Preloaded major welding standard (DVS,TSG,D2002-2006 and others),fully record the welding parameters, Welding record is true ,
2.Welding data can be printed and can be transform to thermal via wifi,realize real-time monitoring
3.Traceability option: position,material,date,operator,welding parameter and others
4.Stable quality ,long working life, can reduce the loss caused by equipment failure.

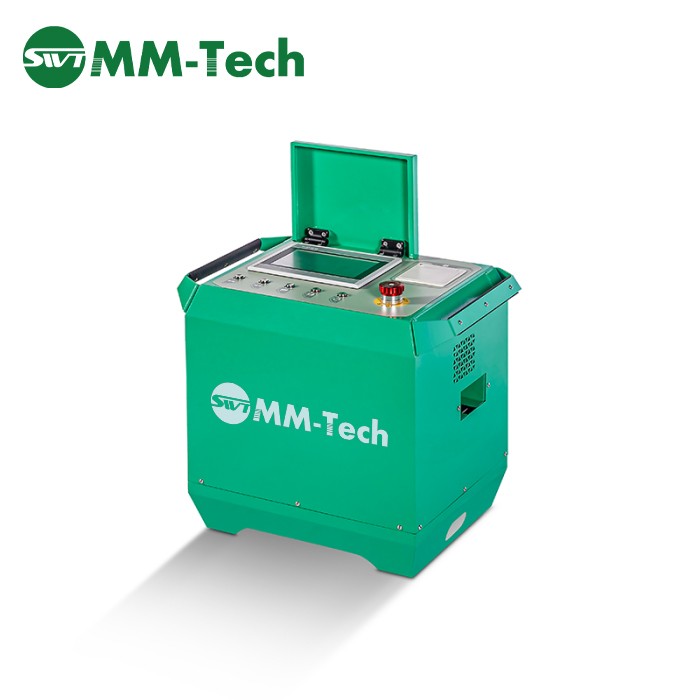

5.New touch screen, GPS location, Enter the operating system by swiping card. strictly control welding operation and quality
6.The 4th clamp is separated from the machine facilitate laying operation and the weld of tee fitting, elbow ,flange

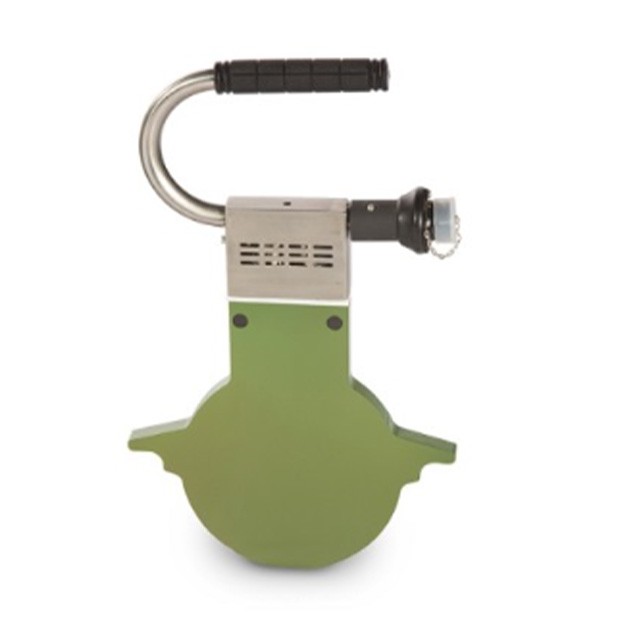

7.Heating plate pop-up automatically, no manual operation, reduce operation step, Increase the level of automation
Standard composition:

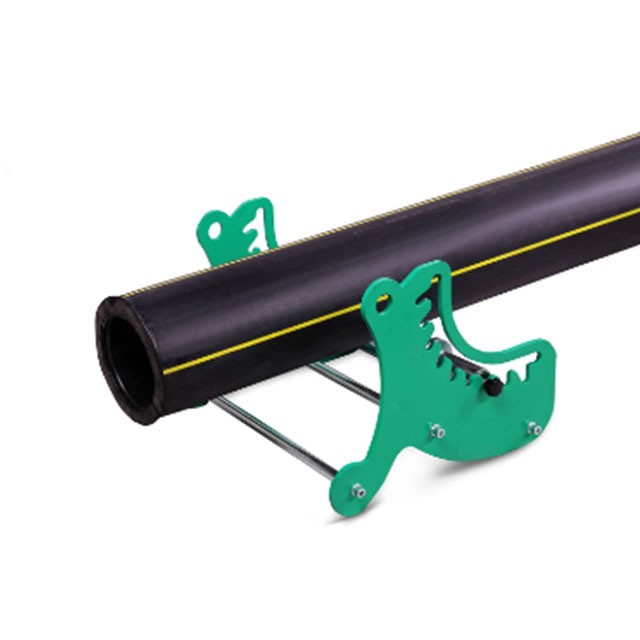

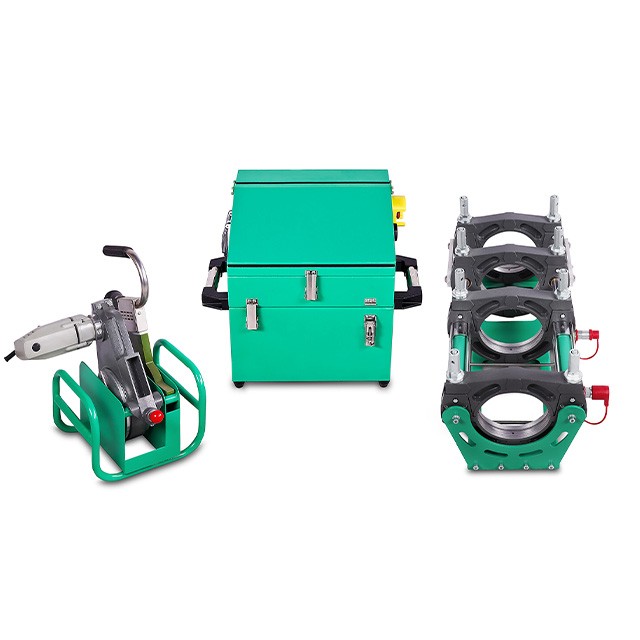

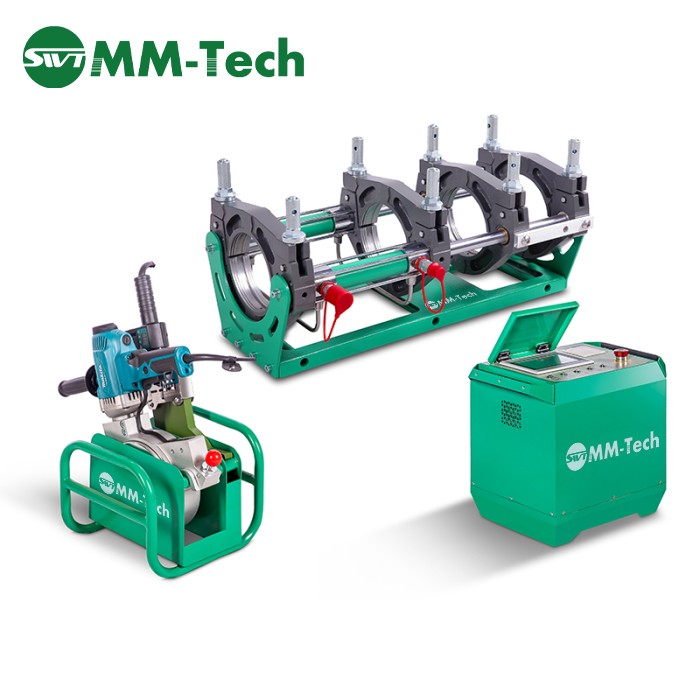

Machine body,milling cutter,heating plate,Hydraulic control unit,support,tool bag,clamps 63,90,110,160,200,250,315mm.
On request :Clamps 40,50,75,125,140,180,225,280mm.
Feature:
1.Preloaded major welding standard (DVS,TSG,D2002-2006 and others),fully record the welding parameters, Welding record is true ,
2.Welding data can be printed and can be transform to thermal via wifi,realize real-time monitoring
3.Traceability option: position,material,date,operator,welding parameter and others
4.Stable quality ,long working life, can reduce the loss caused by equipment failure.
5.New touch screen, GPS location, Enter the operating system by swiping card. strictly control welding operation and quality
6.The 4th clamp is separated from the machine facilitate laying operation and the weld of tee fitting, elbow ,flange
7.Heating plate pop-up automatically, no manual operation, reduce operation step, Increase the level of automation
Standard composition:
Machine body,milling cutter,heating plate,Hydraulic control unit,support,tool bag,clamps 63,90,110,160,200,250,315mm.
On request :Clamps 40,50,75,125,140,180,225,280mm.

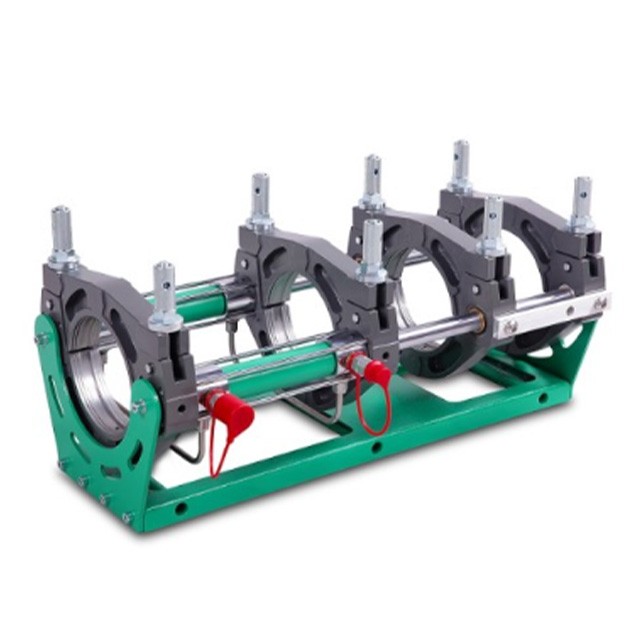

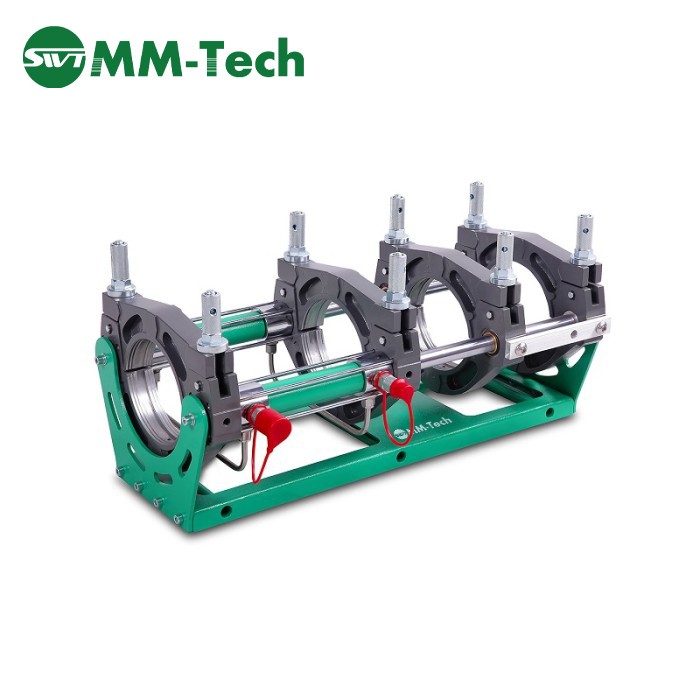

Single clamps, accurate processing size, can effectively reduce the time of pipeline alignment operation, improve the efficiency of welding.
Technical features
CNC 160
CNC 250
CNC 315
Working range
63-160mm
90-250mm
90-315mm
Materials
HDPE/PP/PB/PVDF
Dimensions
600*400*410mm
960*845*1450mm
1090*995*1450mm
Weight machine body
35KG
78KG
124KG
Weight control unit
30KG
30KG
36KG
Rated voltage
220VAC-50/60Hz
Rated power
2600W
3950W
4950W
Memory
4000
